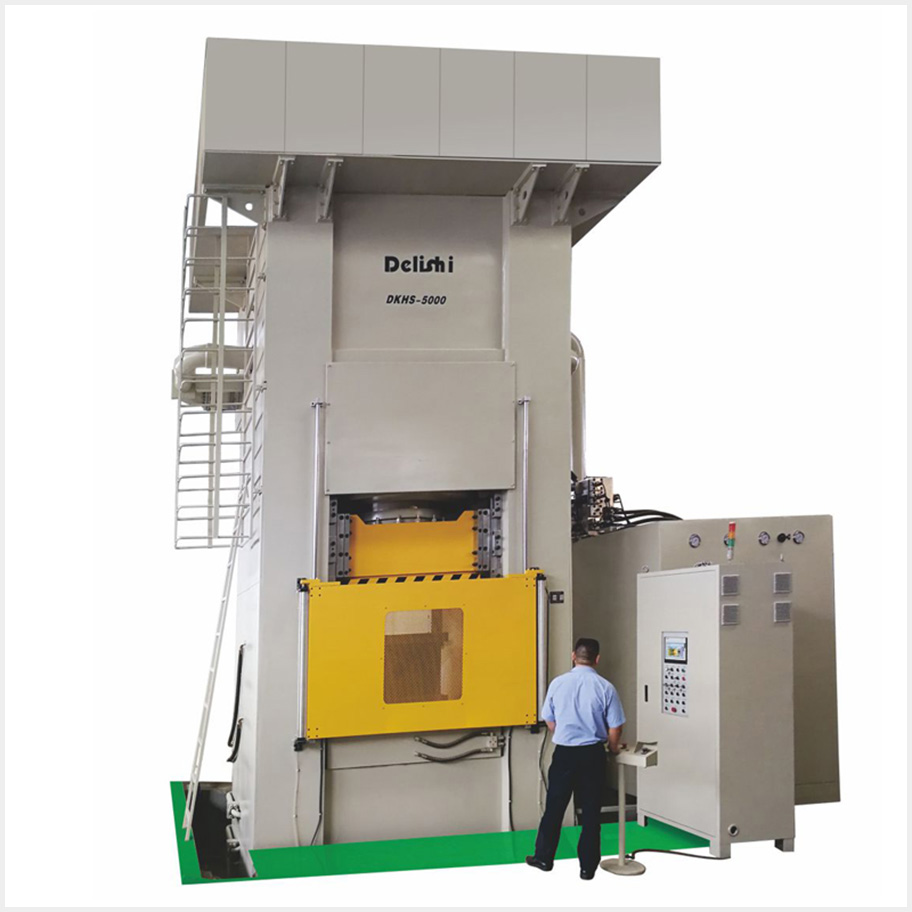

5000 Ton Servo Guide Cold Extrusion Molding Machine

Introduction：

5000 Ton Servo Guide Cold Extrusion Molding Machine are the frame style of choice for the most demanding applications. Gibs are press components that guide the reciprocating motion of the ram to maintain superior squareness and parallelism throughout the stroke.

Speak With Us About Your Project

Request A Quote

Share to:

Machine Video

Features of Servo Guide Cold Extrusion Molding Machine

5000 Ton Servo Guide Cold Extrusion Molding Machine designs are the frame style of choice for the most demanding applications. Gibs are press components that guide the reciprocating motion of the ram to maintain superior squareness and parallelism throughout the stroke.Guided slide with 8- point gibbing.Adjustable self-lubricated bearings.

Dual Palm Button control: anti-tie down, non-repeat controls with ring guards; conforms to OSHA.PLC press control is flexible and safe. PLC controls allow for customized press cycles.The press table is removable, making it quick and easy to drill and tap tool-mounting holes or resurface the table.

Main Specifications

Model		Units
Model		Units	DKHS-500	DKHS-650	DKHS-800	DKHS-1000	DKHS-1200	DKHS-1500
Master cylinder	Capacity	ton	500	650	800	1000	1200	1500
	Stroke	mm	500	500	500	500	500	400
	Fast down speed	mm/s	230	170	190	210	190	220
	Press speed	mm/s	8-16	5-12	5-12	8-16	6-15	3-13
	Return speed	mm/s	200	170	180	210	160	210
System pressure		bar	250	248	240	240	250	240
Ejector cyinder	Capacity	ton	40	50	50	60	80	100
	Stroke	mm	250	250	250	250	250	200
	Dia of ejector bar	mm	60	80	80	80	80	100
Open heigh(slide to bolster)		mm	800	900	1000	1100	1200	1050
Working table size	L-R	mm	800	1000	1000	1200	1300	1400
Working table size	F-B	mm	800	1000	1100	1200	1300	1400
Motor power		KW	34.6	37	60	74	90	110
Machine size	L-R	mm	2650	2940	3000	3660	3800	4150
	F-B	mm	2100	2100	2300	2450	2500	2680
	H	mm	4050	4100	4320	4560	4720	4820

Applications

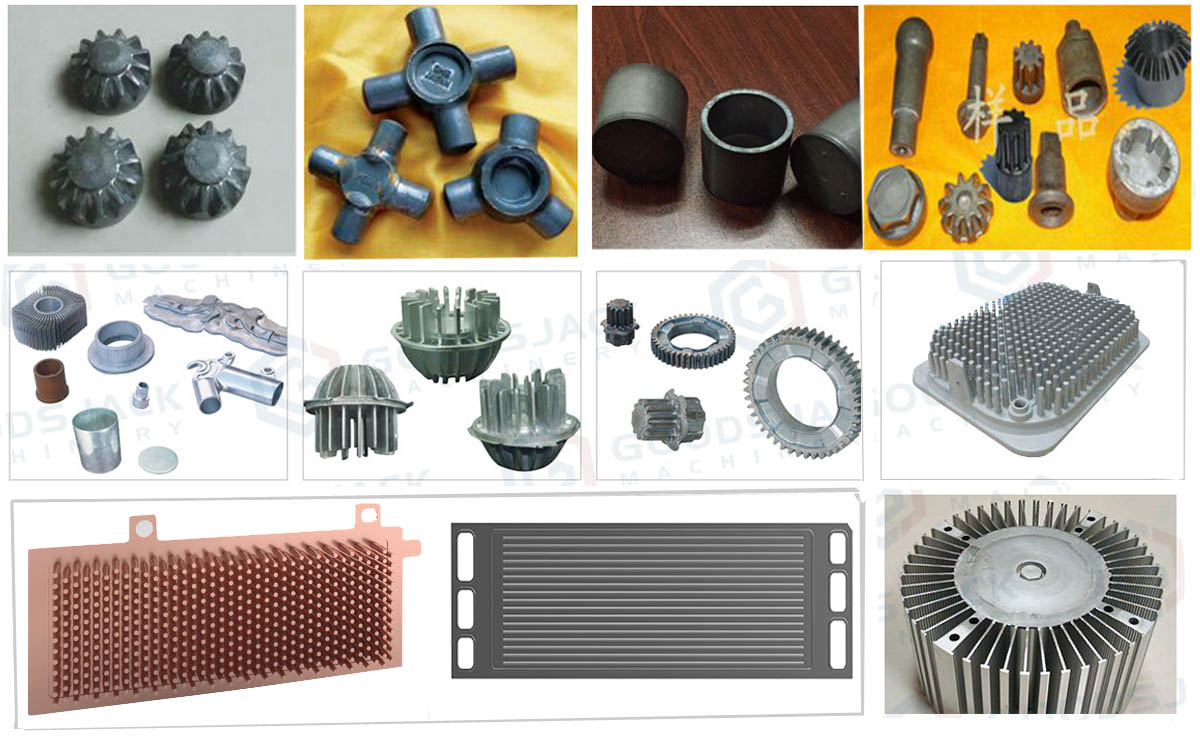

Our gib-guide hydraulic press machine mainly application in metal materials cold forging and extrusion, and punching mark,light streching,cut edges and other materials.Such as cars, motorcycle, bicycles, cell phone case, LED heat sink, watchcase, hardware tools. Especially suitable for the precision molding parts. Servo Guide Cold Extrusion Molding Machine Samples
