Features

C-frame presses, also known as gap frame presses, offer 3-sided access to the working area to facilitate easy part loading and unloading as well as die maintenance.

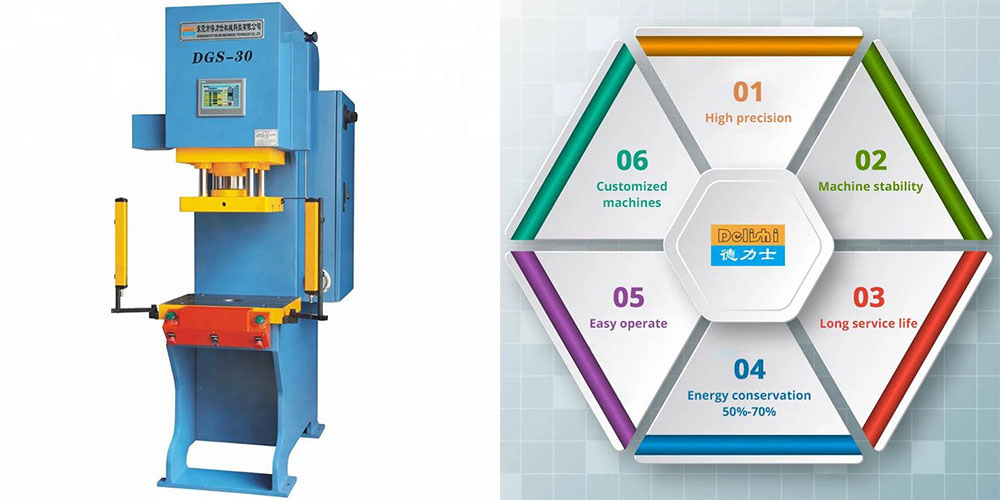

The DGS upgraded hydraulic powered C-frame presses are integrated with force and position transducer in a rigid open C frame structure. The press offered with a wide selection of press modes, such as “Fixed speed/setting position stop”, “Fixed speed/setting load stop”, “Fixed speed/pressing distance stop”, and accuracy ranges in 0.01mm (0.0004 inches).

Main Specifications

Model		Units	Specifications
Model		Units	DGS-05	DGS-10	DGS-15	DGS-25	DGS-35	DGS-50	DGS-80	DGS-100
Main Cylinder Capacity		Ton	5	10	15	25	35	50	80	100
Max System Pressure		Mpa	13	12	15	16	16	20	21	24
Max Stroke Length		mm	180	200	200	250	250	300	300	300
Open Height (slide to bolster)		mm	350	400	400	400	400	550	550	550
Gap Depth		mm	150	175	175	200	200	300	325	325
Slide Approaching Speed		mm/s	200	200	200	200	200	200	200	200
Slide Pressing Speed		mm/s	40	30	25	20	20	20	18	18
Slide Returning Speed		mm/s	200	200	200	200	180	180	180	180
Upper slide size	L-R	mm	/	/	/	/	400	440	520	520
Upper slide size	F-B	mm	/	/	/	/	300	340	400	400
Size of Shank Hole		mm	∅30x50	∅30x55	∅40x60	∅40x60	∅40x65	∅50x70	∅60x75	∅60x75
Fixed Bolster Size	L-R	mm	440	450	450	460	500	700	800	950
Fixed Bolster Size	F-B	mm	300	350	350	350	400	600	650	650
Height of Bolster to Ground		mm	850	850	850	850	850	850	900	900
Over all Dimension	L-R	mm	580	610	620	620	680	720	1050	1150
	F-B	mm	930	940	1080	1100	1150	1500	1750	1850
	H	mm	1770	1880	1980	2040	2050	2300	2560	2560
Main motor power		kw	2.2	3	4	4	5.5	7.5	11	15
Weight (Approx)		kg	950	1020	1500	2200	2800	4800	6500	7500

Applications

Servo C Frame Hydraulic Press Machine also commonly called as open gap frame press, is a versatile hydraulic press machine ideal for almost all applications, such as straightening, assembling, bending, stamping, riveting, press-fit and so on.

Delishi provides a series C frame presses with a variety of bed sizes and tonnages, and we also offer special daylight, stroke and throat depth to customize the machine for your special applications.
