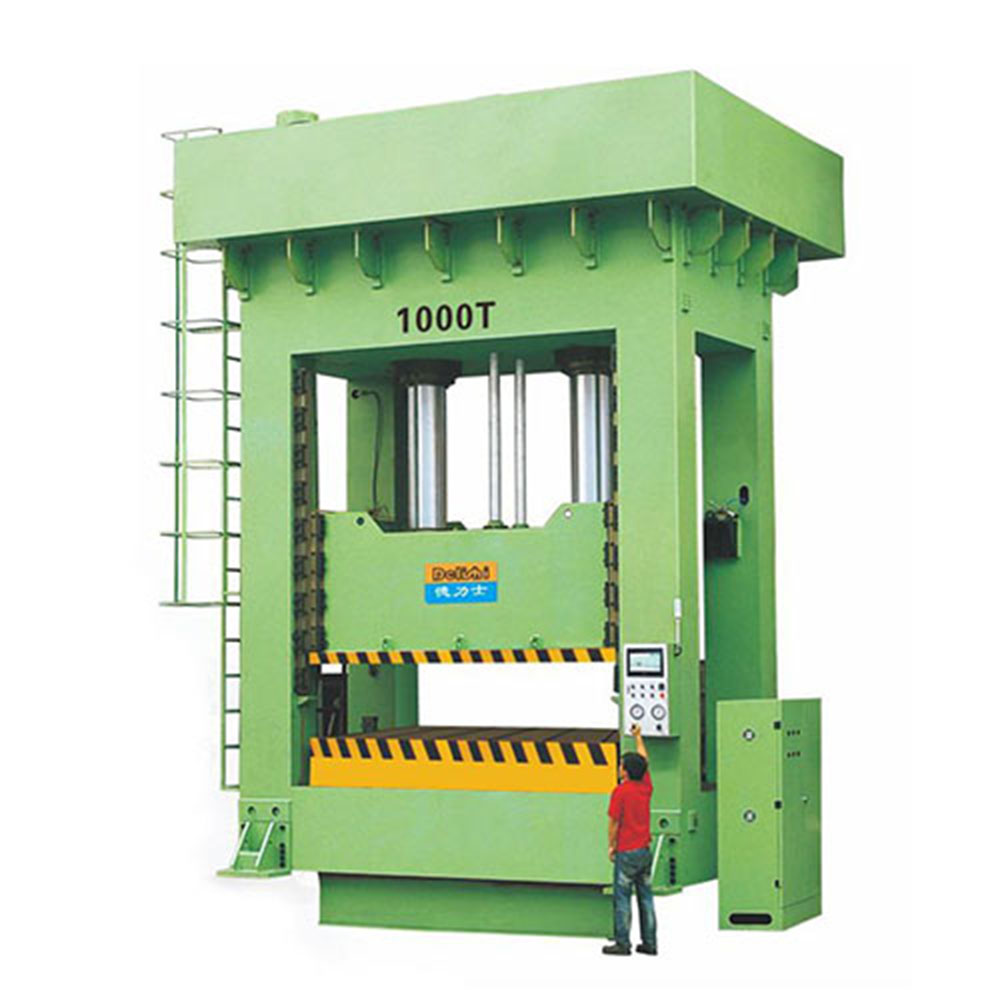

Servo Hydraulic pressure drawing press machineis dynamically changing due to the pressure proportioning function of the main cylinder and lower blank hold cylinder. The main cylinder pressure proportioning can reduce the loss of force during the drawing process so. The lower cylinder pressure proportioning can reduce the force of blank holding along with the change of drawing height and blank holding size. This optional function allows our customers to achieve maximum productivity and minimum rejection rate.

1. Advanced two way cartridge valve system ensures high reliability and much less hydraulic shock direction change;

2. Main hydraulic cylinder is made of alloy cast steel and it’s inner surface is finely grinded for life under high pressure;

3. Four columns are made of alloy steel with high tensile resistance and finely grinded and electro-plated with hard chrome;

4. Key hydraulic and electric units adopted are famous brands from Germany USA and Japan;

5. The operating force, no load traveling and low speed movement and travel range can be adjusted subjuce to technological requirements;

6. A hydraulic ejector is installed on movable working table for knocking out workpiece after drawing.

1. Servo hydraulic deep drawing press mainly applied to metal materials cold extrusion, stamping, light stretching, blanking and other purposes. Water canal, auto parts and so on.

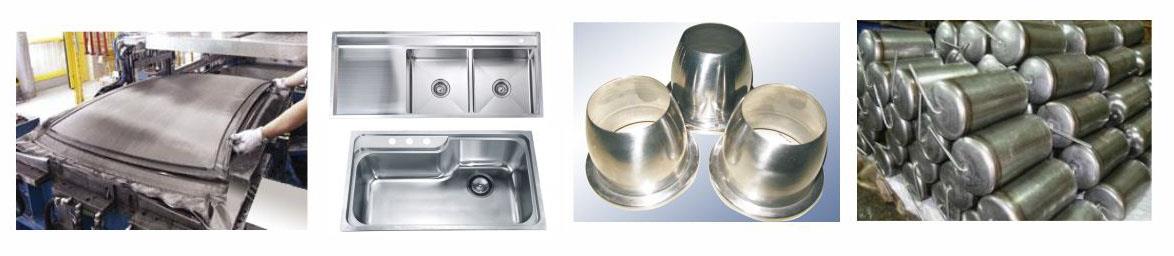

2. Deep drawing and forming of tableware , kitchenware , metal cover of electric motor , household appliances and lighting ware etc;

3. Main hydraulic cylinder is made of alloy cast steel and it’s inner surface is finely grinded for prolonging working life under high pressure.

For every press machine built at DELISHI, a series of training material will be prepared in great detail before shipping, which is designed to help you maximize the use of your equipment, intimately familiar with your manufacturing equipment and improve your overall manufacturing processes. The training material including:

How to fast install and set up the press machine

The operation and safety points of the hydraulic press that you should know

How to do maintenance

How to do troubleshooting for the servo hydraulic deep drawing press
