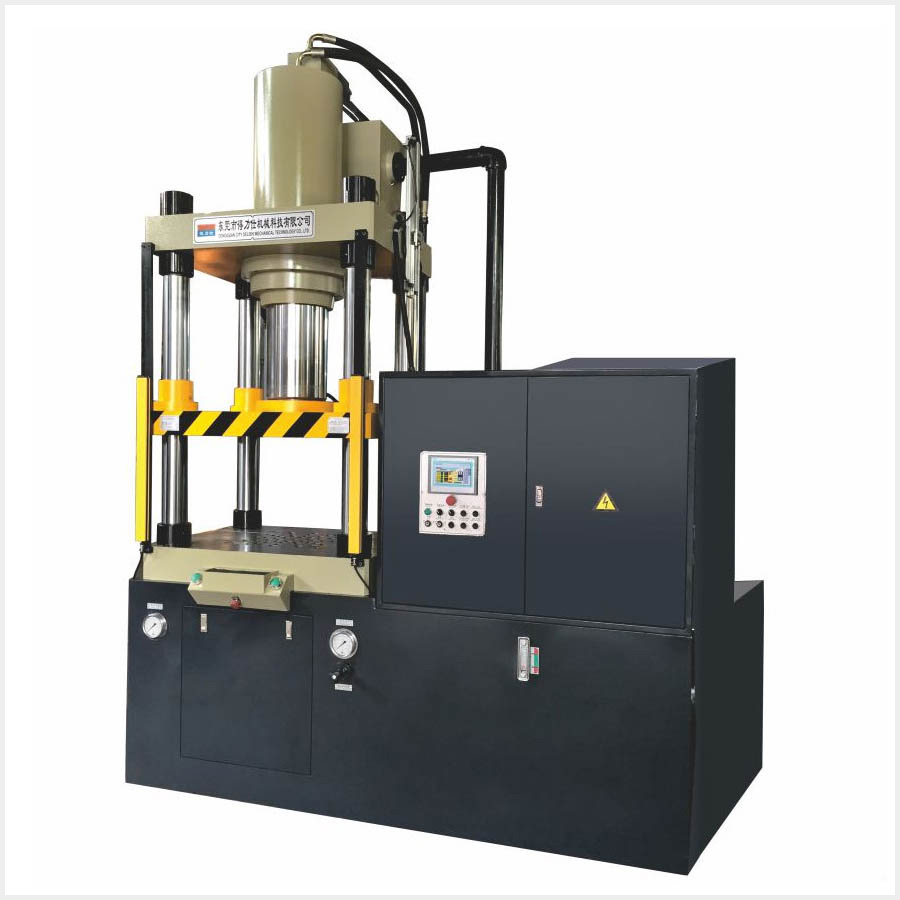

Four Column Deep Drawing Hydraulic Press

Four Column Deep Drawing Hydraulic Press

Introduction：

Delishi/Goodsjack Four Column Deep Drawing Hydraulic Press Machine, with 27 years extensive experience in stamping industry. We have developed a specially designed high-speed precision-control stamping press to serve the stamping world across the globe.

Speak With Us About Your Project

Request A Quote

Share to:

Machine Video

PRODUCT DESCRIPTION

Features of Four Column Deep Drawing Hydraulic Press

Applications of Deep Drawing Hydraulic Press

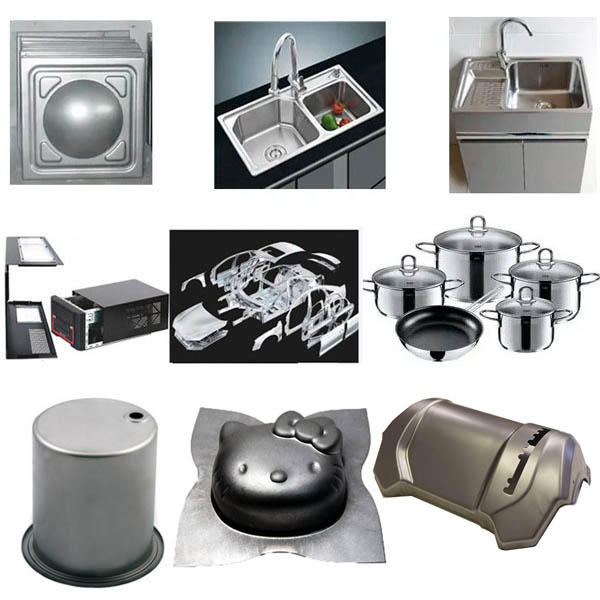

This deep drawing press mainly apply to deep drawing and forming of tableware , kitchenware , metal cover of electric motor , household appliances and lighting ware etc.

Main Specifications Of Four Column Deep Drawing Hydraulic Press

Model		Units	Specificatons
Model		Units	DSFS-50	DSFS-120	DSFS-220	DSFS-220L	DSFS- 275	DSFS- 350	DSFS-350L	DSFS- 500	DSFS-500L	DSFS- 600
Main cylinder	Rated capacity	Ton	35	85	160	160	200	260	260	350	350	420
Main cylinder	Max.stroke	mm	350	450	560	560	560	560	560	600	600	700
Blank holding cylinder	Rated capacity	Ton	15	35	60	60	75	90	90	150	150	180
Blank holding cylinder	Max.stroke	mm	175	200	260	260	260	260	260	300	300	350
Knocking out ejector	Rated capacity	Ton	2	3	5	5	5	5	5	10	10	10
Knocking out ejector	Max.stroke	mm	150	180	200	200	200	220	220	250	250	300
Open height		mm	600	730	900	1000	900	900	900	1000	1200	1500
Height of fixed working table		mm	990	1055	1080	1100	1100	1200	1200	1550	1600	1700
Approaching speed of M.W.T.		mm/s	195	220	210	210	210	200	200	210	210	190
Drawing speed of M.W.T.		mm/s	25	20	20	20	19	17	17	18	18	14
Returning speed of M.W.T.		mm/s	180	220	200	200	200	165	165	190	190	180
Ascending speed of blank holding cylinder		mm/s	120	50	120	120	115	160	160	85	85	75
Working table size available	(L-R)	mm	500	500	710	900	800	900	1100	1050	1250	1400
Working table size available	(F-B)	mm	550	600	870	1100	900	1000	1250	1200	1500	1600
Overa ll dimension	(L-R)	mm	1350	1420	2090	2280	2190	2200	2400	2970	3090	3690
	(F-B)	mm	1530	1680	1500	1750	1650	1850	1850	2200	2400	2000
	(H)	mm	2680	3100	3350	3500	3600	3800	3840	4680	4800	5640
Motor power		kw	8.6	16	30	30	30	37	37	55	55	55
Weight(Approx)		kg	2280	3500	6000	6600	7500	9500	12500	16000	22000	23000
