1. High-speed heavy duty design
2. DELISHI can work directly with your stamping tool supplier
3. Modular design, customized to your cutting specifications
4. Perfect stability and effective resistance to off-center loading
5. Superior rigidity and bed to platen parallelism for perfect stamping result
6. Precision-guided moving slide (platen)
7. Particularly suitable for precision stamping automotive parts
8. Fast, easy and safe setup and operation
9. Years of maintenance-free and reliable operation
| Model | Units | Specifications | ||||||
| DKDS-200 | DKDS-300 | DKDS-500 | DKDS-800 | DKDS-1000 | DKDS-2000 | |||
| Main cylinder capacity | ton | 200 | 300 | 500 | 800 | 1000 | 2000 | |
| System pressure | Mpa | 24 | 24 | 25 | 25 | 25 | 25 | |
| Main cylinder stroke | mm | 200 | 200 | 200 | 250 | 250 | 400 | |
| Open height | mm | 500 | 550 | 580 | 700 | 800 | 900 | |
| Working table height | mm | 850 | 900 | 930 | 1000 | 1000 | 1300 | |
| Working tabel size | L-R | mm | 500 | 550 | 700 | 1100 | 1100 | 1600 |
| F-B | mm | 500 | 650 | 800 | 1200 | 1200 | 1600 | |
| Master cylinder speed | Down speed | mm/s | 200 | 240 | 230 | 230 | 200 | 200 |
| Press speed | mm/s | 5-10 | 5-10 | 5-10 | 3-8 | 3-8 | 3-8 | |
| Return speed | mm/s | 200 | 220 | 300 | 180 | 180 | 180 | |
| Motor power | kw | 7.5 | 11 | 22 | 42 | 42 | 42*2 | |

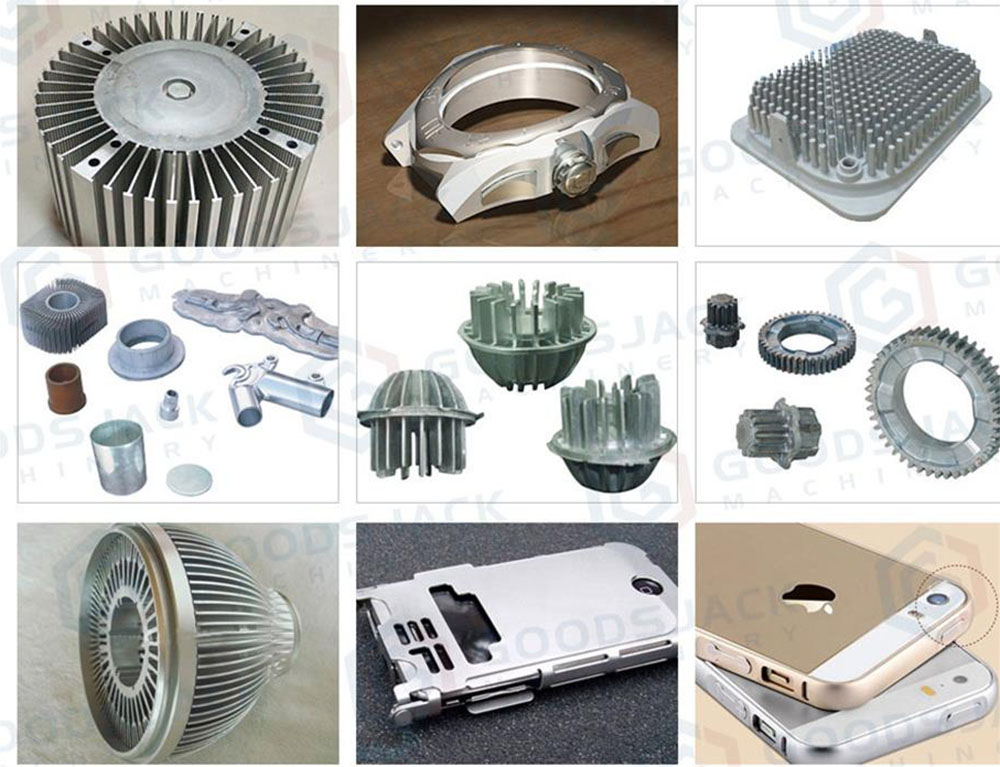

High Speed Cold Extrusion Molding Hydraulic Press was mainly applied in to metal materials, cold forging, warm forging and extrusion molding, and punching mark, light stretching, cut edges and other materials. Such as cars, motorcycles, bicycles, cell phone case, LED radiator and heat sink, watchcase, hardware tools.

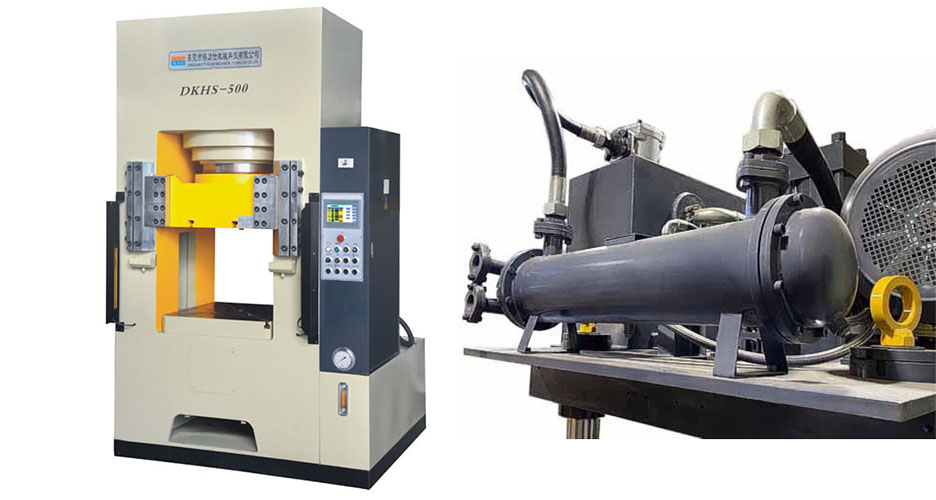

BUILT-IN HEAT EXCHANGER: No Need For Centralized Cooling
All our Cold Extrusion Molding Hydraulic Presses can supply feature a built-in, full size, high quality, water cooled heat exchanger that will keep the press oil at an optimal level.
