Servo Guide Hydraulic Cold Forging Press

Introduction：

Nominal Force: 100-1500 ton Foot Pedal/Two-handed Start Button Siemens PLC, Schneider Electric Components 10 INCH Touch Screen in English Manual & Automatic E-stop button Safety light curtains Lighting T slotted bed table Front pneumatic door

Speak With Us About Your Project

Request A Quote

Share to:

Features of Servo Guide Hydraulic Cold Forging Press

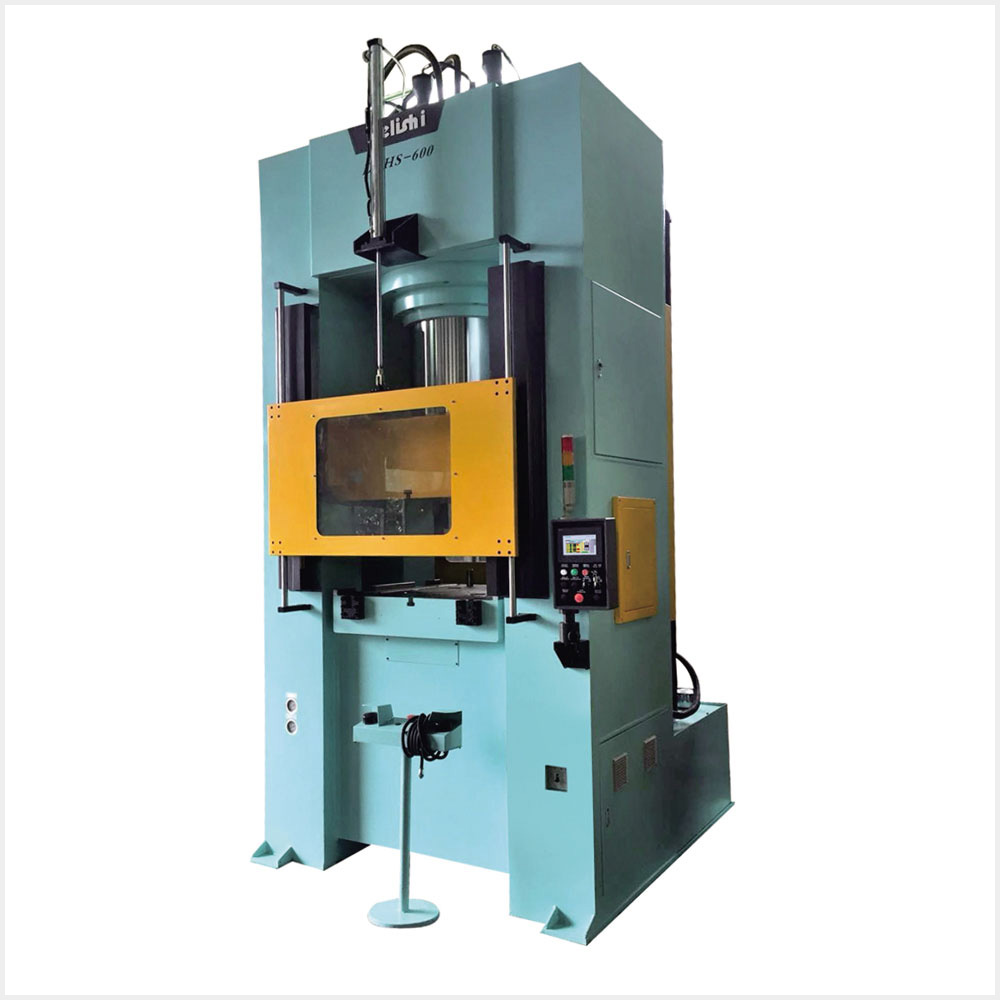

servo-guide-hydraulic-cold-forging-press-1000

The servo guide hydraulic cold forging press is equipped with a strong highly rigid unitized frame, right-angle long six-sided slide guides, and a quick-response hydraulic overload protection system.

Nominal Force: 100-1500 ton
Foot Pedal/Two-handed Start Button
Siemens PLC
Schneider Electric Components
10 INCH Touch Screen in English
Manual & Automatic
E-stop button
Safety light curtains
Lighting
T slotted bed table
Front pneumatic door

Main Specifications Of Servo Guide Hydraulic Press Machine DKHS

Model		Units	Specifications
Model		Units	DKHS-100	DKHS-200	DKHS-300	DKHS-400	DKHS-500	DKHS-650	DKHS-800	DKHS-1000
Master cylinder	Capacity	ton	100	200	300	400	500	650	800	1000
	Stroke	mm	300	400	400	400	500	500	500	500
	Fast down speed	mm/s	180	160	160	230	230	170	190	210
	Press speed	mm/s	7-15	8-17	5-12	7-18	8-16	5-12	5-12	8-16
	Return speed	mm/s	170	150	130	210	200	170	180	210
System pressure		bar	240	235	240	240	250	248	240	240
Ejector cyinder	Capacity	ton	15	30	30	40	40	50	50	60
	Stroke	mm	200	200	200	200	250	250	250	250
	Dia of ejector bar	mm	40	50	50	60	60	80	80	80
Open heigh(slide to bolster)		mm	600	700	700	700	800	900	1000	1100
Working table size	L-R	mm	500	700	700	800	800	1000	1000	1200
Working table size	F-B	mm	500	700	700	800	800	1000	1100	1200
Motor power		KW	8.6	16	23.6	34.6	34.6	37	60	74
Machine size	L-R	mm	1250	1680	1680	2600	2650	2940	3000	3660
	F-B	mm	1430	1780	1780	2100	2100	2100	2300	2450
	H	mm	2850	3480	3500	3700	4050	4100	4320	4560
