Goodsjack offers several standard 4-post servo-hydraulic press machines, with load pressure holding time. These standardized servo press systems can be modified with specific tonnage, stroke, shut height, and so on to meet your special need.
1.Low failure rate,automatic alarm and fault indication,one-button reset function.
2. Remote maintenance service can be realized.
3. Easier to operate.Easier to change mold.
4. Independent electrial control, reliable, audio-visual and convenient for maintenance.

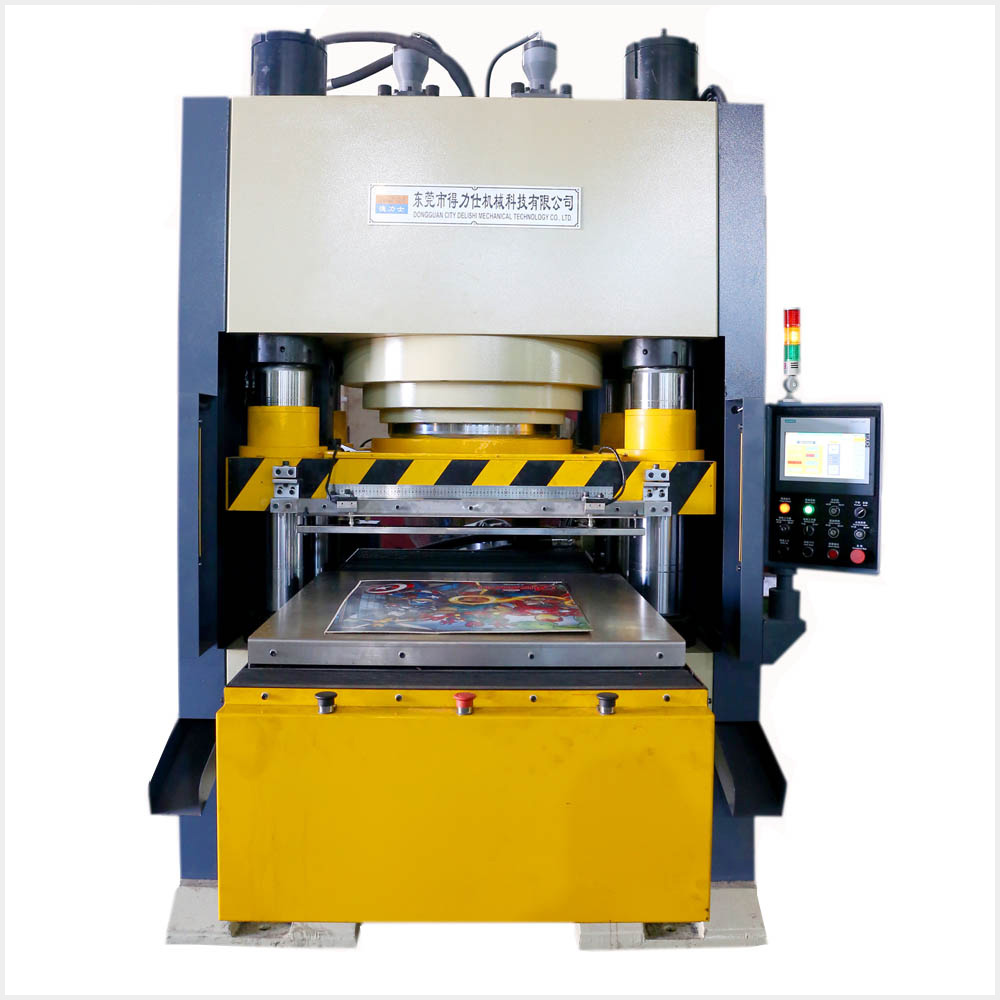

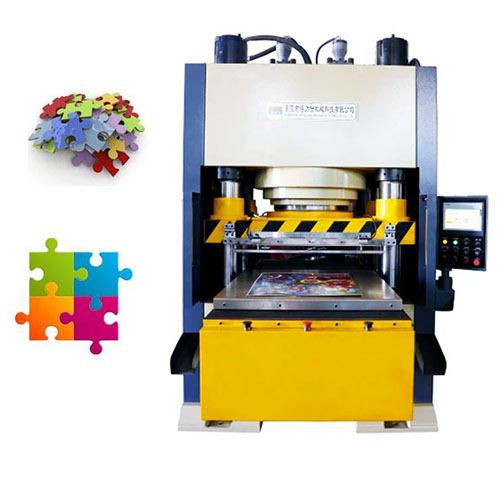

Delishi Puzzle Making Press was mainy applied in cardboard and wooden puzzles. All puzzle hydraulic press inquire, please contact us.
Pressure stability,have no phenomenon of cutting and rough edge. Because the cutting is balanced and accurancy.which can ensure the using life of cutting board.
| Model | Unit | Specifications | |
| DPTS-600 | |||
| Structure | Four columns and three beams | ||
| Master Cylinder capacity | ton | 600 | |
| System pressure | mpa | 25 | |
| Max stroke of slider | mm | 200 | |
| Max open height | mm | 200 | |
| Slider speed | Fast down | mm/s | 215 |
| Pressing | mm/s | 3-7 | |
| Return | mm/s | 195 | |
| Working table size | L-R (inner) | mm | 850 |
| F-B (edge) | mm | 880 | |
| Working table height | mm | 1030 | |
| Min height of loading mold | mm | 0 | |
| Mold shift stroke | mm | 850 | |
| Machine size | L-R | mm | 1960 |
| F-B | mm | 2890 | |
| H | mm | 2600 | |
| Motor power | kw | 22 | |
Remarks:Final specifications are subject to contact or aggrement.
