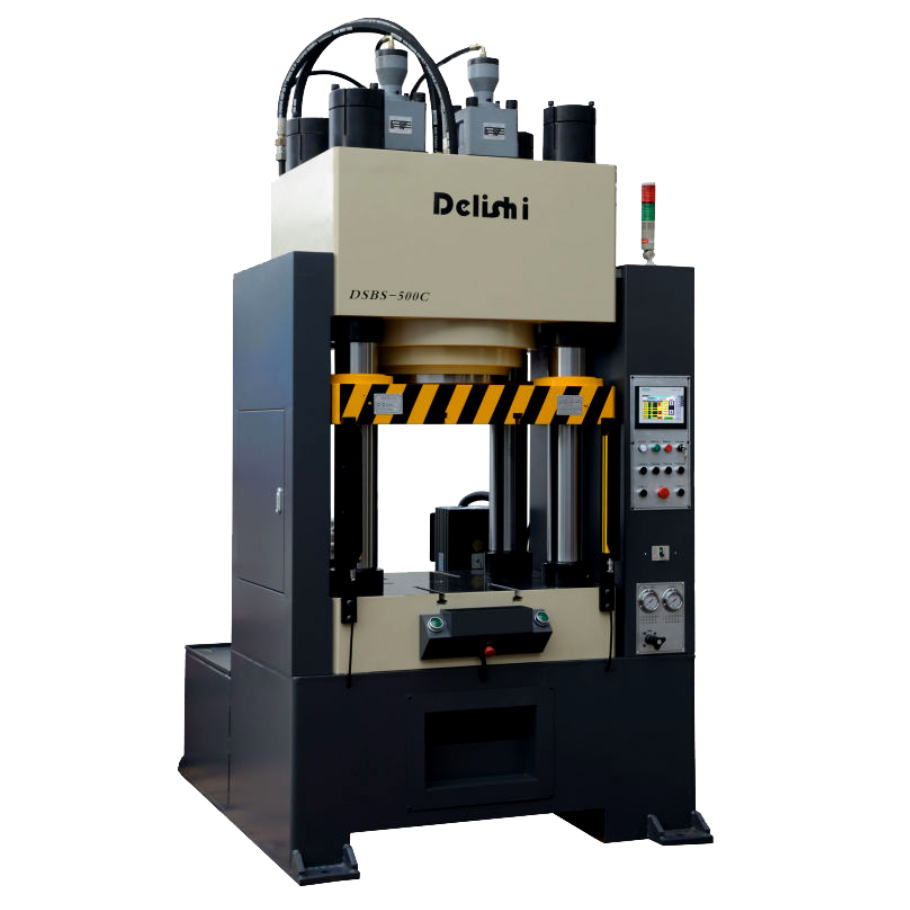

Upper Cylinder Four Column Hydraulic Press

Introduction：

This upper cylinder four column hydraulic press is suitable for cold forging, warm forging, hot gorging, and applicable to liquid metal forming and ceramic powder metallurgy pressing forming.
● Certifications: CE, UL, and ISO

Speak With Us About Your Project

Request A Quote
Share to:

Machine Advantages



Features of Upper Cylinder Four Column Hydraulic Press

  • Use servo control system to save energy 50-70%.
  • Pressure stability, pressure error ±1bar, repeatable positioning accuracy up to±0.02mm.
  • Low failure rate, automatic alarm and fault indication, one-button reset function.
  • Remote maintenance service can be realized.
  • Can set up multi-stage pressure, multi-speed and continuous fixed-pressure function.
  • Adopting an integral frame structure, high strength, low distortion and durability.
  • Eight-sided rigid guide rails have good guide precision, strong side pressure resistance and easy maintenance.
  • Suitable for cold forging , warm forging, hot gorging, and applicable to liquid metal forming and ceramic powder metallurgy pressing forming.

    • Product Application

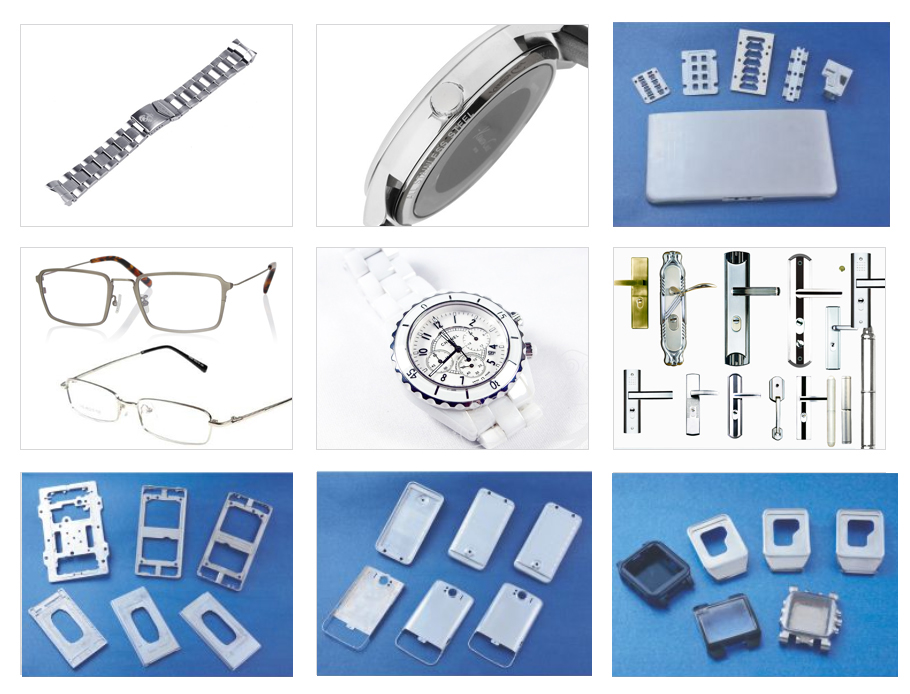

    1. Stamping , forming , shallow , drawing and pressing assembly etc.
    2. Forming of spectacle parts , lock parts , metal hardware , pressing assembly of electronic connectors , electric components and rotor & stator of motor etc.
    3. Suitable for cold forging , warm forging, hot forging, and applicable to liquid metal forming and ceramic powder metallurgy pressing forming.Upper Cylinder Four Column Hydraulic Press Applicaitons

    Technical Parameters

    DSBS-A Cylinder Half Type Single Movement Hydraulic Press

    Model Units Specifications
    DSBS-10 DSBS-20 DSBS-50 DSBS-100 DSBS-200 DSBS-300 DSBS-500 DSBS-800 DSBS-1000 DSBS-2000
    Main cylinder capacity ton 10 20 50 100 200 300 500 800 1000 2000
    System pressure Mpa 13 13 13 20 25 25 25 250 25 25
    Main cylinder stroke mm 250 300 300 200 150 150 150 160 250 400
    Open height mm 400 450 450 450 450 450 500 700 700 900
    Working table height mm 820 820 820 850 850 900 1000 1100 1100 1350
    Working tabel size L-R mm 400 400 450 450 500 550 700 850 900 1500
    F-B mm 400 400 450 450 500 650 800 950 950 1500
    Master cylinder speed Down speed mm/s 150 130 100 100 100 135 110 110 190 200
    Press speed mm/s 30 20 15 15 15 5 4 3  3-10 3-10
    Return speed mm/s 150 130 100 100 100 100 100 100 180 180
    Motor power kw 2.2 3 4 5.5 5.5 7.5 15 18.5 45 55*2

    The above parameters are for reference, ordering the contract shall prevail.

    DSBS-A series can according to customer's requirement.
